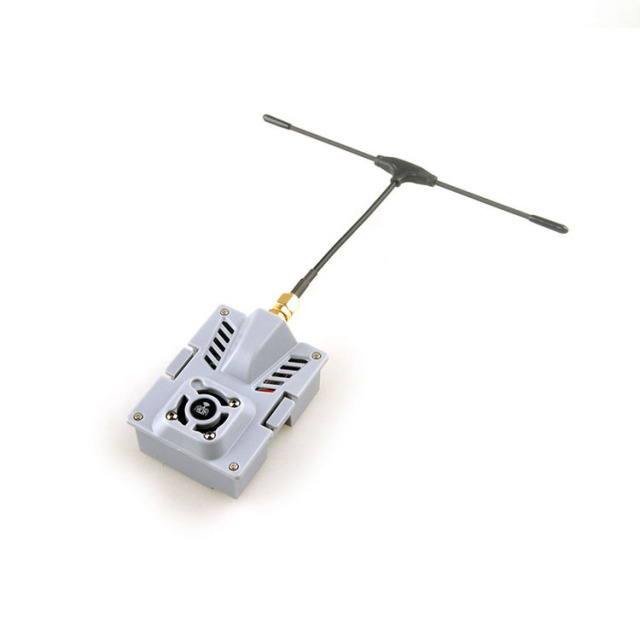

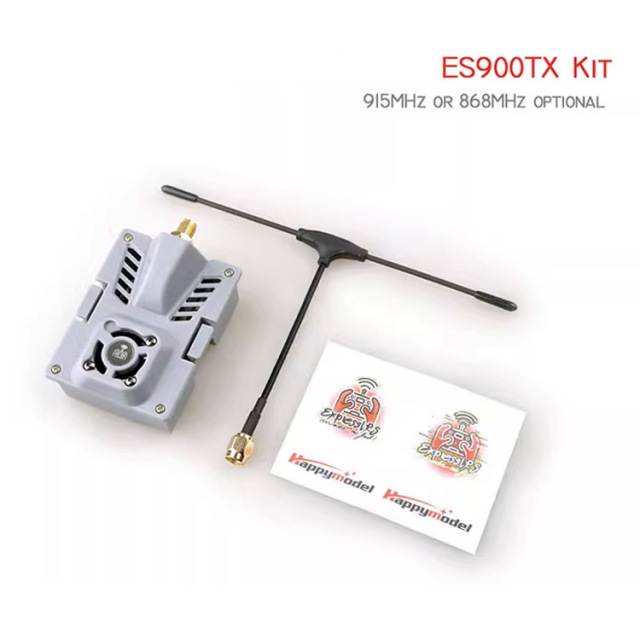

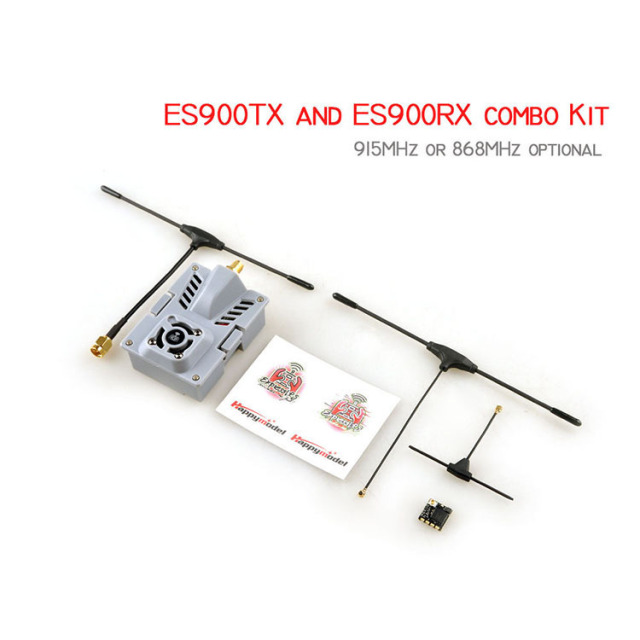

ES900TX
|

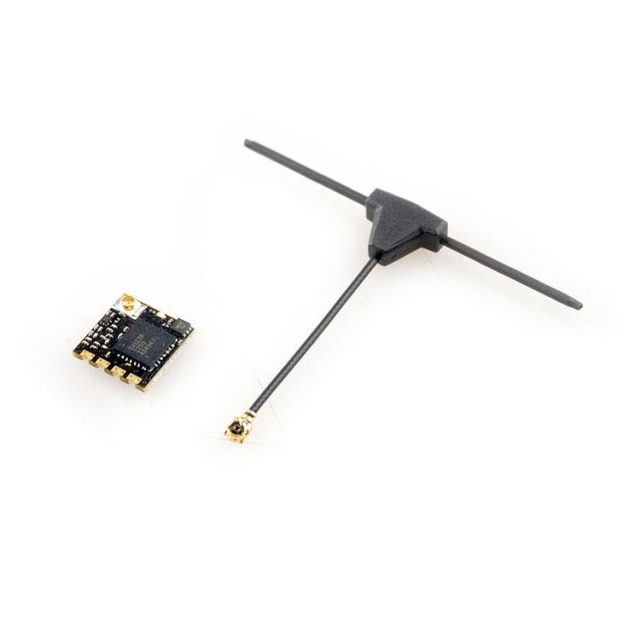

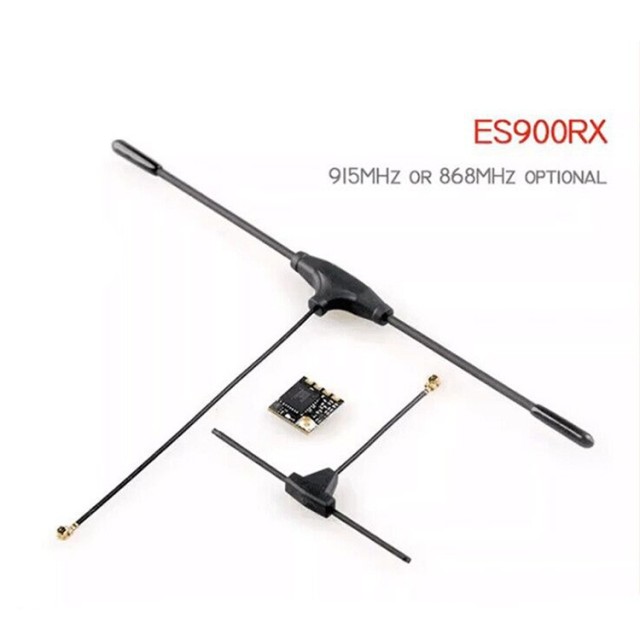

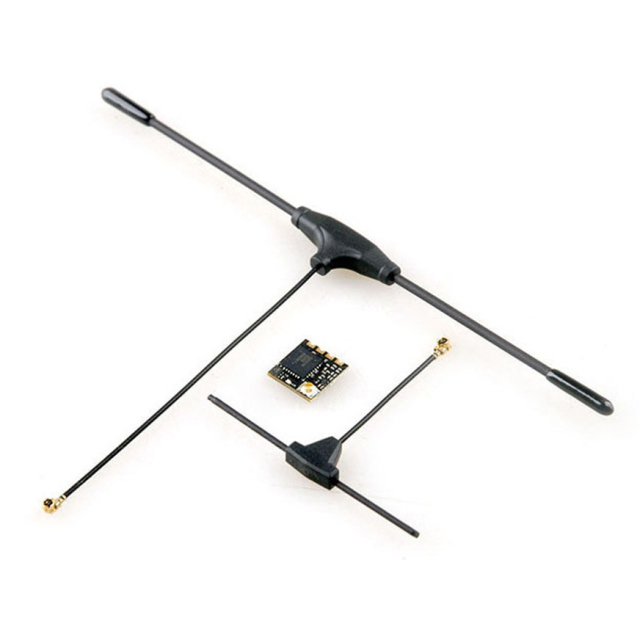

ES900RX
|
|
MCU:ESP32+ESP8285
|
MCU:ESP8285
|
|
Dimension: 55mm*39mm*11mm
|
VCC input: 5v
|
|
Weight: 9.2gram (only the TX module)
|
Operation current: ~100Ma
|
|
Antenna connector: SMA
|
Rx To FC protocol: CRSF
|
|
VCC input: 5~13v, Recommend 5v~9v
|
RF Frequency optional: 915mhz or 868mhz(EU)
|
|
RF Frequency optional: 915mhz or 868mhz(EU)
|
Dimension: 12mm*12mm*3mm
|
|
Maximum Output Power: >30dBm
|
Weight: 0.60 gram (exclude antenna)
|
|
Antenna connector: IPEX1
|
|
|
Telemetry output Power: <17dBm
|
