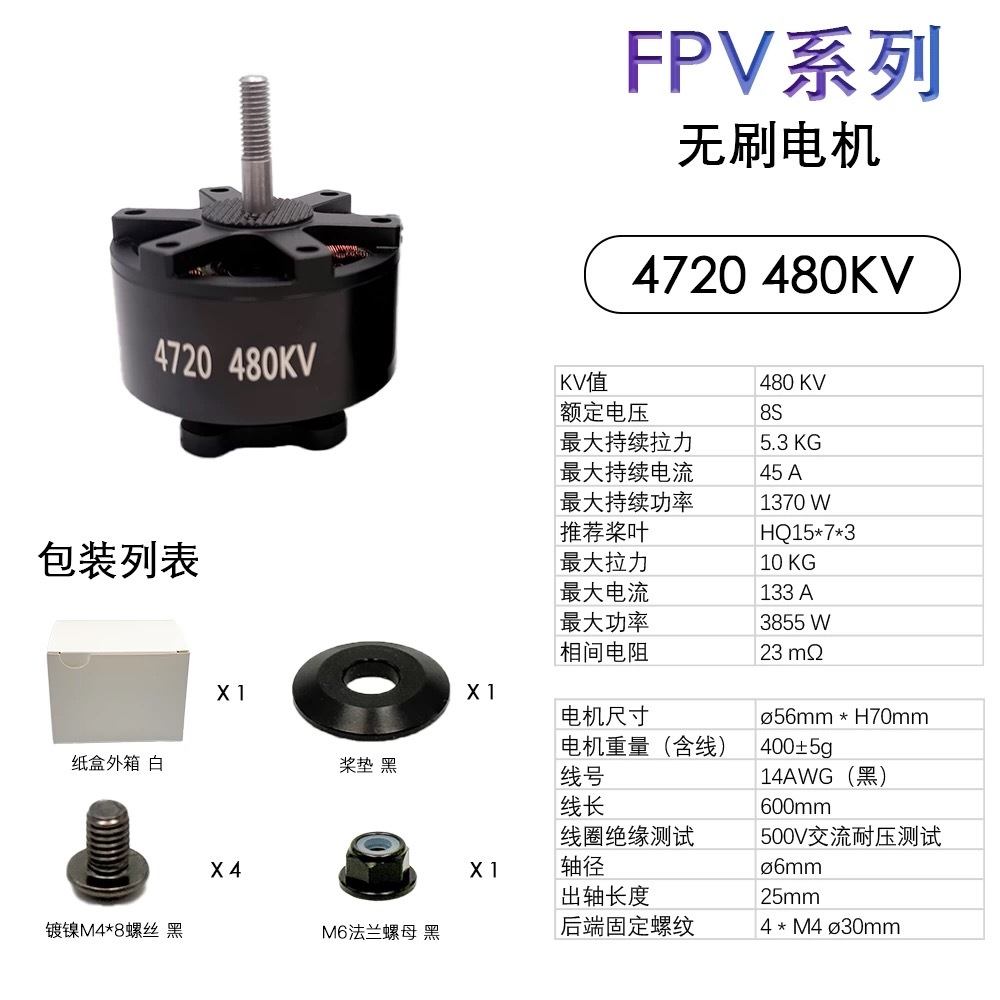

KV value
|
480KV
|

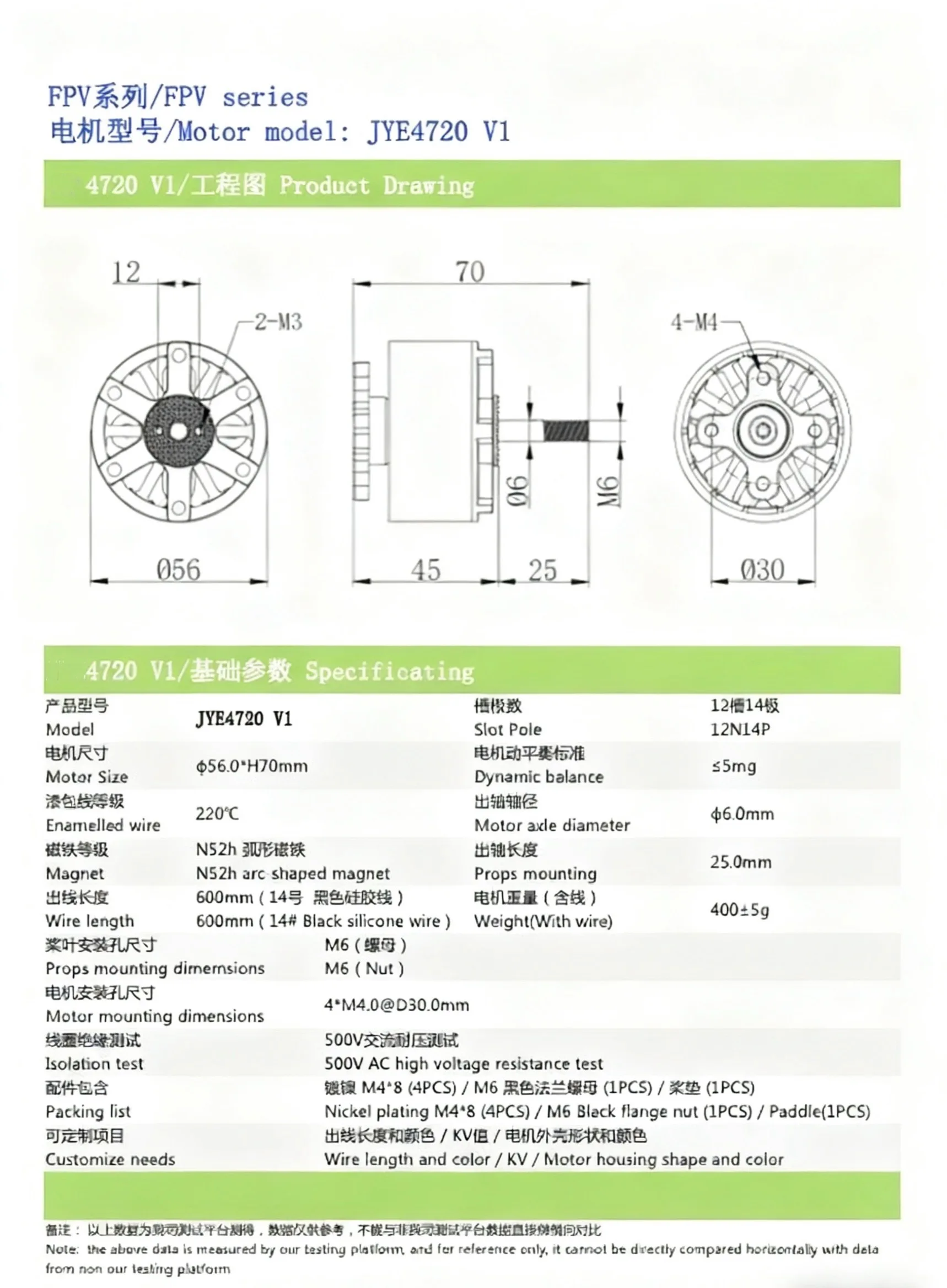

Motor Dimensions
|
ф56mm *H70mm
|
|
Rated voltage
|
8S
|
Motor weight（Containing wires）
|
400+/-5g
|
|
Maximum continuous tensile force
|
5.3KG
|
Wire Number
|
14AWG(Black)
|
|
Maximum continuous current
|
45A
|
Wire length
|
600mm
|
|
Maximum continuous power
|
1370W
|
Coil Insulation Test
|
500V AC Withstand Voltage Test
|
|
Recommended Paddle Blades
|
HO15*7*3
|
Shaft diameter
|
ф6mm
|
|
Maximum tensile force
|
10KG
|
Output shaft length
|
25mm
|
|
Maximum current
|
133A
|
Rear fixed thread
|
4* M4 ф30mm
|
|
Maximum Power
|
3855W
|
||
|
Interphase resistance
|
23mΩ
|
