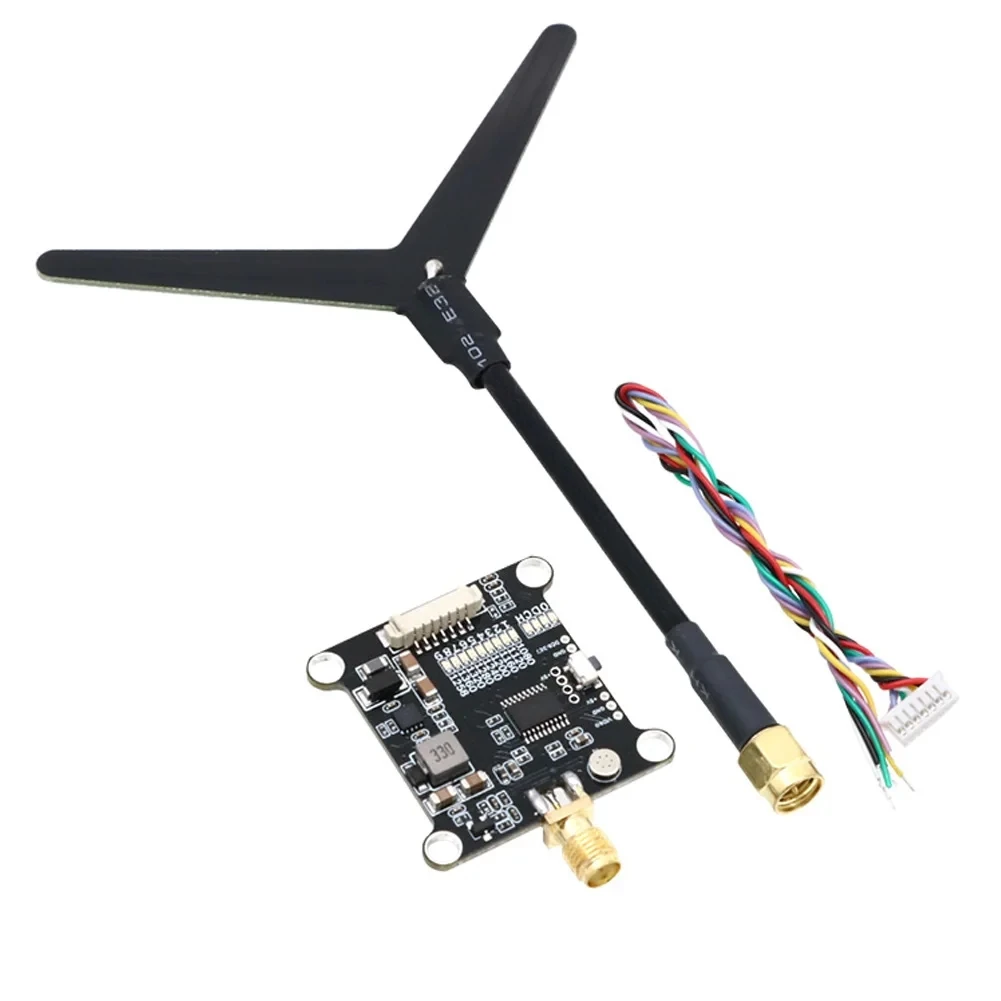

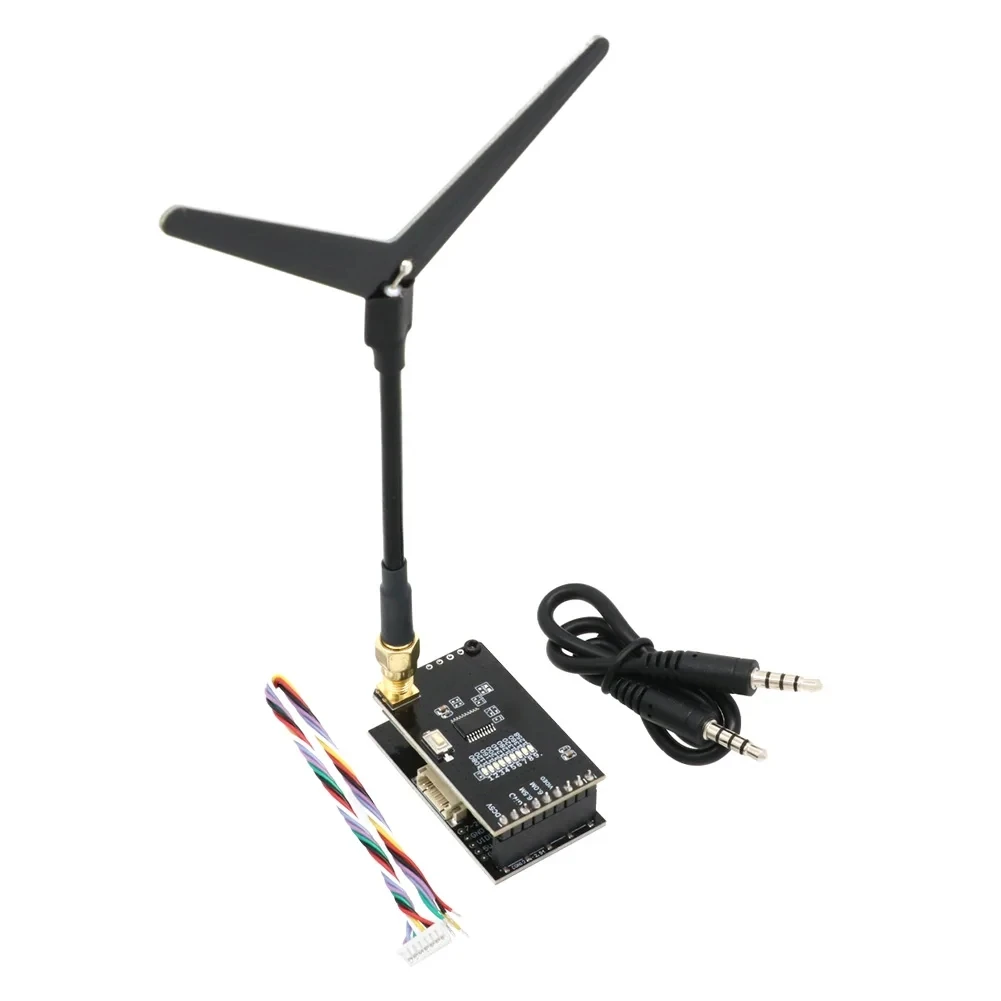

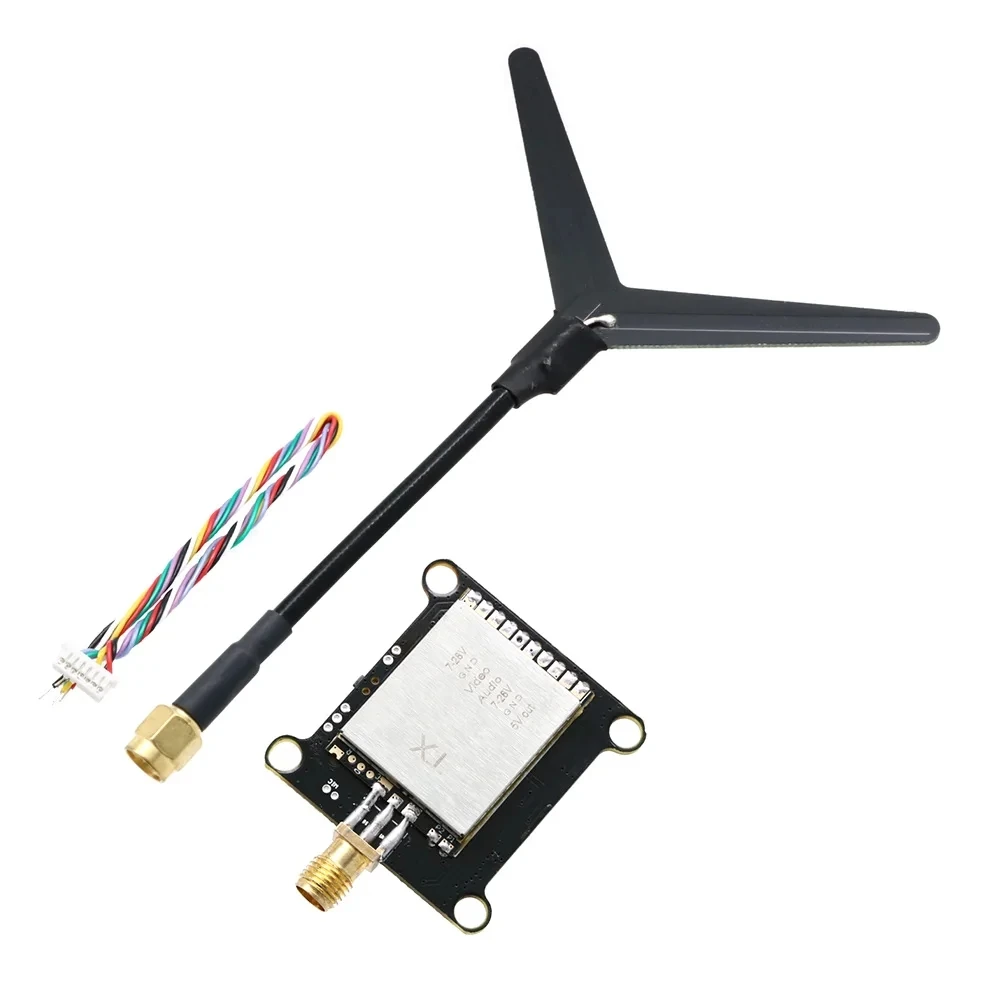

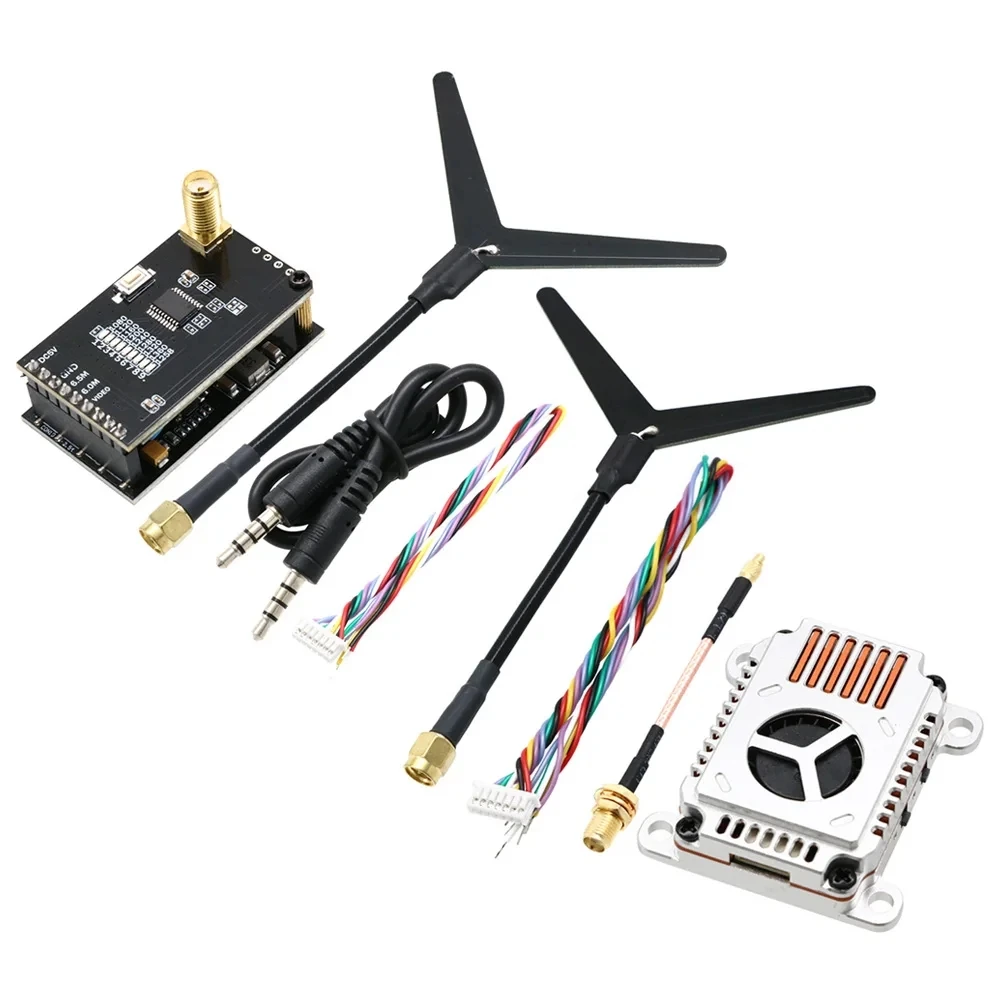

1.2G 1.2GHz 1W 1.6W 2W 25mW/2000mW VTX Switchable Video Transmitter Module w/ 1.2G 8Ch VRX For FPV Long Range Racing Drone

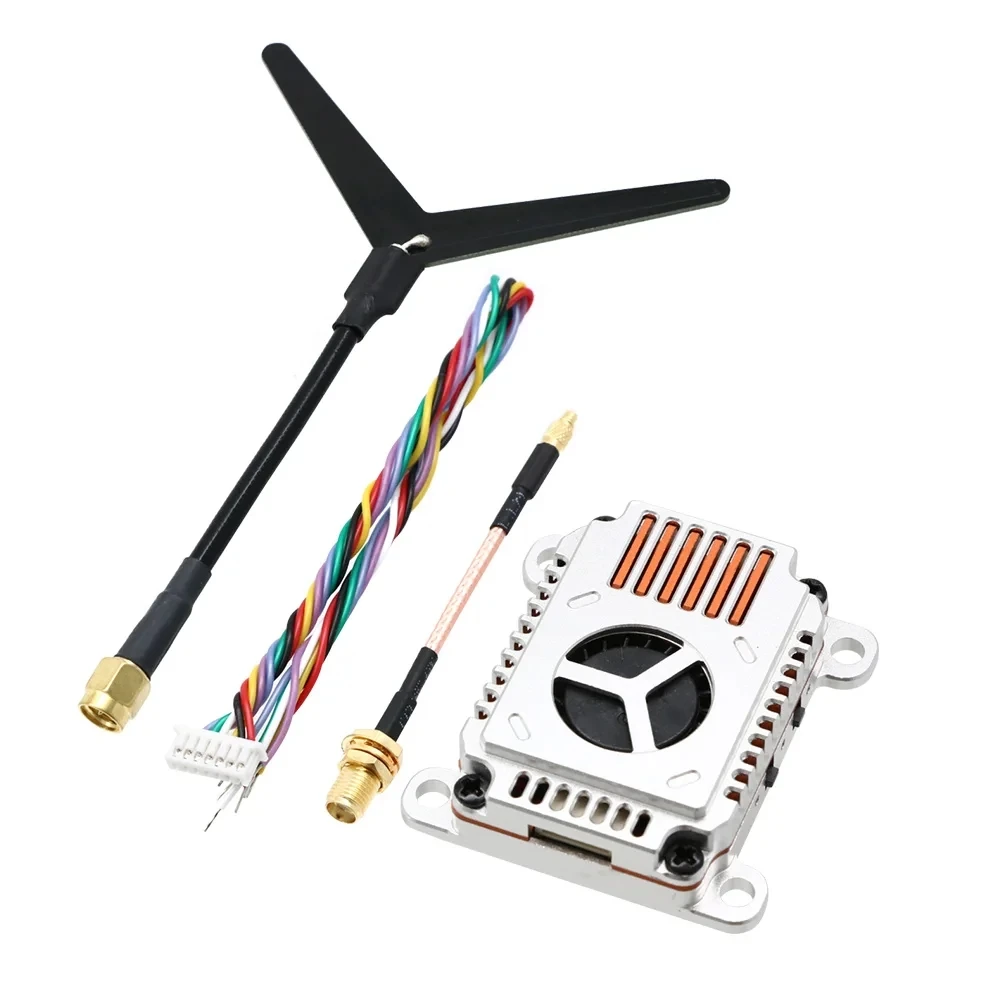

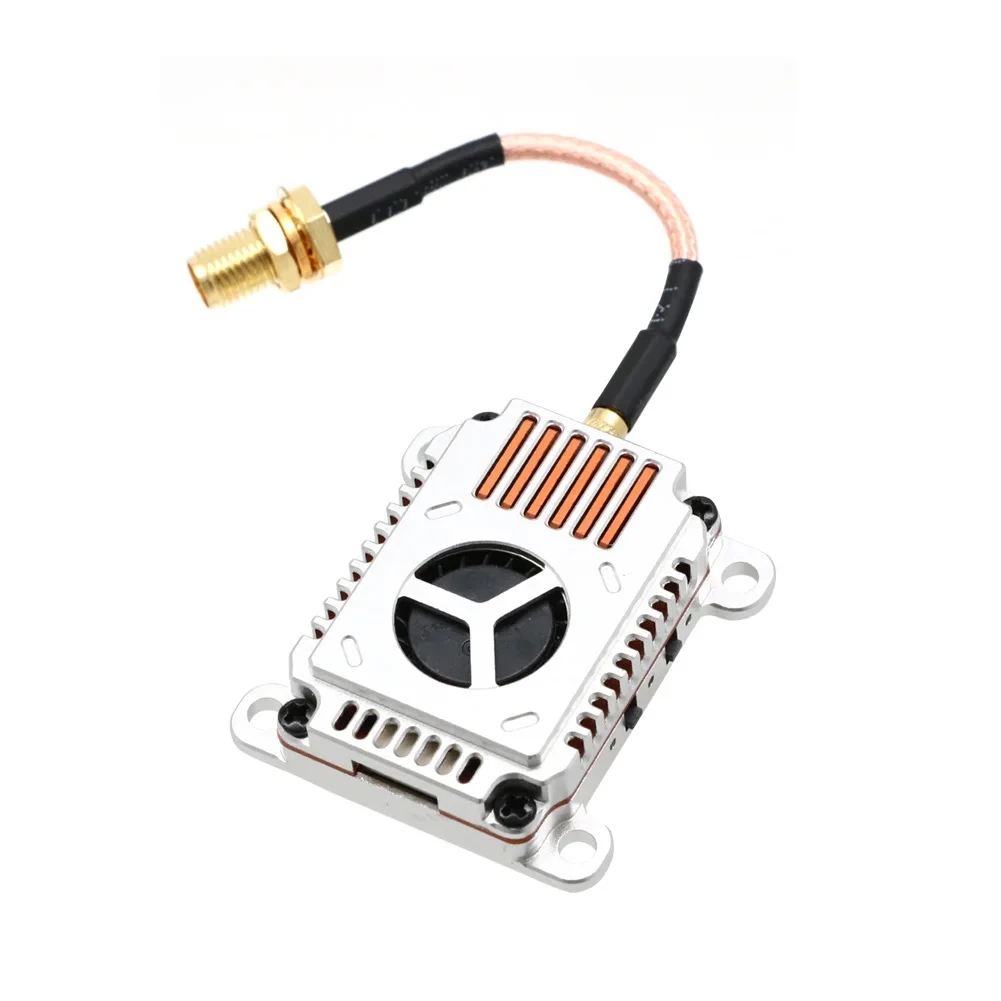

1.2G 2W VTX: 1. When installing the image transmission, it is necessary to leave space to ensure air convection around the module and ensure module heat dissipation; Otherwise, the module overheating protection will be activated, reducing power transmission and even shutting down power transmission. 2. It is recommended to ensure the correct voltage range and positive and negative poles before connecting the power supply to avoid burning out the components. 3. It is recommended to ensure that the RF output terminal has an antenna installed before connecting to the power supply, which can extend the service life of the module. 4. Please read the instruction manual before use, as this can correctly wire and extend the service life of the module.

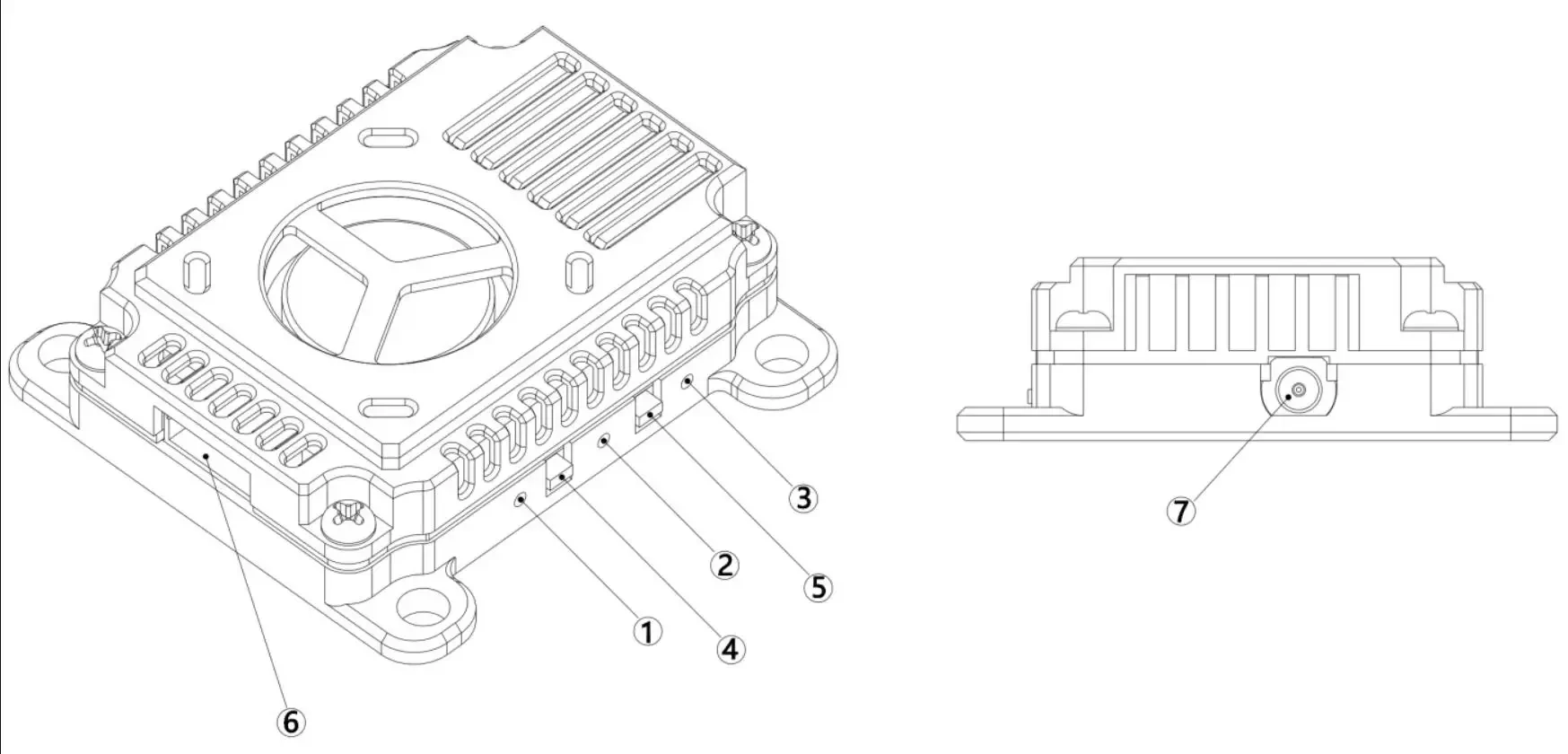

Interface and button indicator light layout: 1. Frequency indicator light: red LED 2. Frequency band indicator light: blue LED 3. Power indicator light: Green LED 4. Frequency band and frequency point adjustment buttons 5. Power adjustment button 6.1.0 6P cable holder 7. MMCX antenna base
Features: Unlock top performance with our 1.3GHz band that shines with excellent environmental adaptability. Reliable mechanical switch ensures easy and efficient power and channel setting. Enjoy unrivalled clarity with a robust 1600mW transmitting power. Never compromise on power with wide voltage input from 7-36V. Supports IRC VTX control protocol for seamless operation and control and equipped with lightweight antenna.
